• Multi Vortex Mixer
  • DHM-250
  • Speed range: 500~2500rpm, Reciprocating diameter (amplitude): 4mm horizontal rotation.
  • DHM-250
  • Multi Vortex Mixer
  • Speed range: 500~2500rpm, Reciprocating diameter (amplitude): 4mm horizontal rotation.

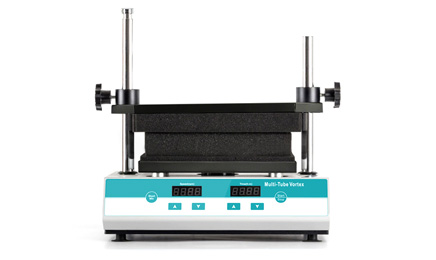

DHM-250 Multi Vortex Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others.
Product Introduction
DHM-250 Multi-Tube Vortex Mixer (Digital Multi-Tube Vortex Oscillator) uses a brushless DC motor and microcomputer control technology. Its unique knob operation mode is simple and easy to use. By replacing the fixed sponge for different test tubes, it can be used for mixing and cultivation of various commonly used test tubes, with a maximum capacity of 50 samples at a time. It is suitable for the fields of biotechnology, microbiology, and medical analysis, among others.


Product Features
◆ One-button operation mode for easy use;
◆ Timer can be set from 1 minute to 99 hours 59 minutes, and a beep will sound when the operation is finished;
◆ Multiple sponge tube holders available for versatile use;
◆ Soft start and uniform acceleration effectively prevent sample splashing;
◆ Brushless DC motor drive for accurate speed, long life, and maintenance-free operation;
◆ Can handle up to 50 test samples at once for efficient and fast experiments;
◆ Simple operation panel, precise control by microprocessor, with LED real-time display of speed and time;
◆ User-friendly program design with built-in jog and timing modes.


Technical Parameters
Model: DHM-250
Rotation speed range: 500~2500rpm
Orbit diameter (amplitude): 4mm horizontal orbit
Input power: 60W
Dimensions: 410*276*432mm (L*W*H)
Time setting: 1min ~ 99h59min
Max. loading capacity: 4.5kg
Input voltage: AC100-240V 50-60Hz
Weight: 20kg


Tube Rack Model Selection
Model Specification Applicable Tube Diameter
DHM-200-T10 50xΦ10mm Φ9~Φ10mm
DHM-200-T12 50xΦ12mm Φ11~Φ13mm
DHM-200-T15 50xΦ15mm Φ14~Φ17mm
DHM-200-T20 50xΦ20mm Φ18~Φ21mm
DHM-200-T25 15xΦ25mm Φ24~Φ27mm
DHM-200-T29 15xΦ29mm Φ28~Φ32mm
Other Customized Specifications Customizable Customizable




Single Page - Color Page
Name: Author: Action:
Multi Vortex Mixer   DHM-250 Vortexer Download







Product List
DHM-250 Unit
Host Machine Unit
Special Test Tube Rack Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
