• Lab Mixer
  • DHM-300T
  • Speed range: 300~3000rpm, oscillation diameter (amplitude): 4mm horizontal oscillation.
  • DHM-300T
  • Lab Mixer
  • Speed range: 300~3000rpm, oscillation diameter (amplitude): 4mm horizontal oscillation.

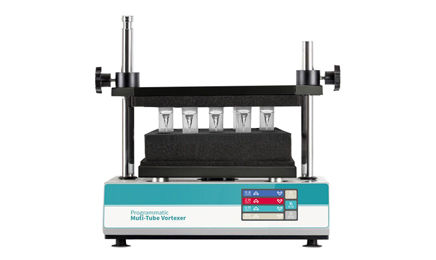

DHM-300T Lab Mixer adopts a brushless DC motor and microcomputer control technology. Its unique full-touch screen operation mode is simple and easy to use, with built-in uniform speed, impact, and programming modes. By replacing different tube fixed sponges, it can mix and cultivate various commonly used test tubes, with a maximum of 50 samples processed at a time. It is suitable for fields such as genetics, testing, biology, microbiology, and medical analysis.
Product Introduction
DHM-300T Lab Mixer adopts a brushless DC motor and microcomputer control technology. Its unique full-touch screen operation mode is simple and easy to use, with built-in uniform speed, impact, and programming modes. By replacing different tube fixed sponges, it can mix and cultivate various commonly used test tubes, with a maximum of 50 samples processed at a time. It is suitable for fields such as genetics, testing, biology, microbiology, and medical analysis.


Product Features
1. LCD touch screen with graphical display for intuitive and convenient operation, microprocessor for precise control.
2. DC brushless motor for precise speed control, long lifespan, and maintenance-free operation.

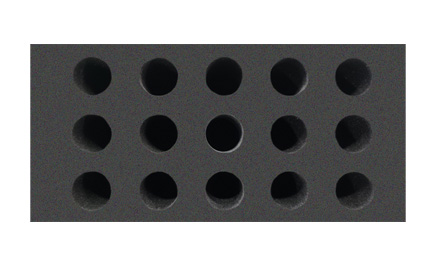

3. Various sponge tube holders available for adaptation to multiple commonly used tubes, with wide applications.
4. Soft start for uniform acceleration and effective prevention of sample splashing.
5. Can handle up to 50 samples at once, high throughput for efficient and rapid experiments.
6. New impact mode with high-speed forward and reverse rotation settings for enhanced mixing efficiency.
7. New programming mode for convenient multi-segment processing of special materials, with support for up to 8 segments and cycle operation.


Technical Parameters
Model: DHM-300T
Rotation Speed Range: 300~3000rpm
Orbit Diameter (Amplitude): 4mm horizontal orbit
Timing Range: 1min ~ 99h59min
★Forward Rotation Time: 1~99S
★Reverse Rotation Time: 1~99S
★Data Storage: 15 groups
★Programming Mode: Maximum of 8 segments, with cycle operation
Input Power: 100W
Dimensions: 410*276*432mm (L*W*H)
Maximum Load Capacity: 4.5kg
Input Voltage: AC100-240V 50-60Hz
Weight: 21kg

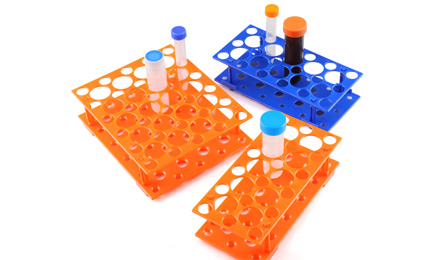

Selection of Test Tube Rack Models
Model Specification Applicable Test Tube Diameter
DHM-200-T10 50xΦ10mm Φ9~Φ10mm
DHM-200-T12 50xΦ12mm Φ11~Φ13mm
DHM-200-T15 50xΦ15mm Φ14~Φ17mm
DHM-200-T20 50xΦ20mm Φ18~Φ21mm
DHM-200-T25 15xΦ25mm Φ24~Φ27mm
DHM-200-T29 15xΦ29mm Φ28~Φ32mm
Other Customized Specifications Available upon request Available upon request




Single Page - Color Page
Name: Author: Action:
Lab Mixer   DHM-300T Vortexer Download







Product List
DHM-300T Unit
Host Machine Unit
Special Test Tube Rack Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
